For the AAR M-101 standard axle of type K. The diameter of the axle journal is φ6.1905(Inch) to φ6.1915(Inch).

Back to the catalog

Axle of class K


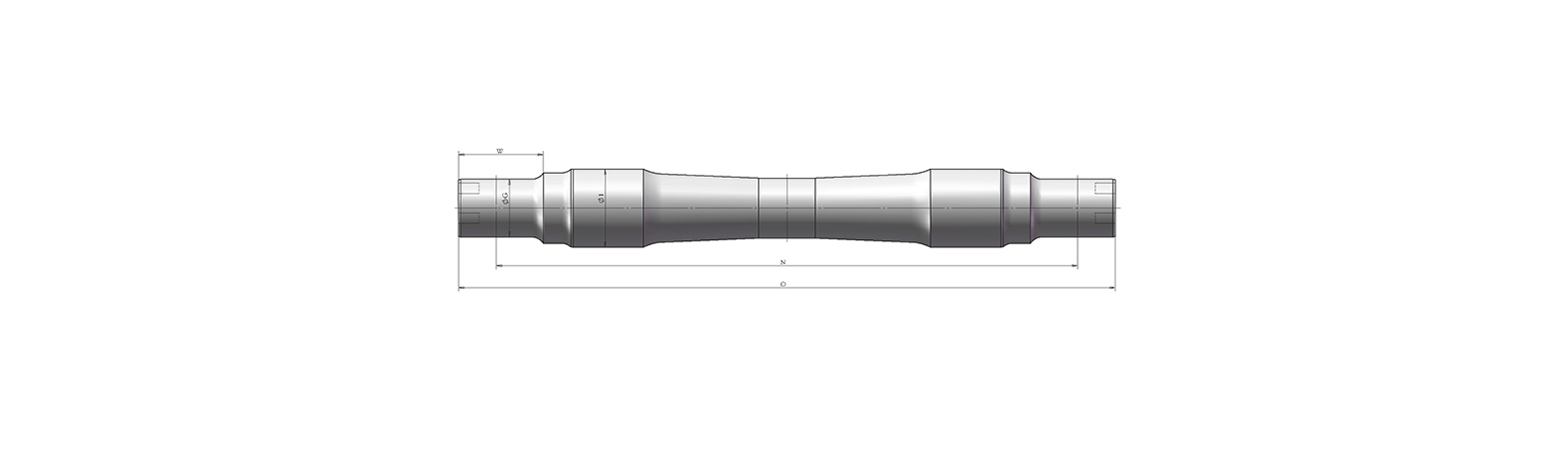

O：Axle length
N: Bearing center distance
G: Journal Diameter
I: Wheel seat Diameter
W: Journal Length

Drawing No.
O (mm)
N (mm)
G (mm)
I (mm)
W (mm)
Weight
(kg)
Standard
RT-AW-06-027
2213.76
2006.6
157.24
222.25
226.85
508.32
AAR M-101
RT-AW-06-028
1803.5
1549.43
157.24
212.9
250.3
394.16
AAR M-101
RT-AW-06-029
2213.8
2006.6
157.25
222.25
226.85
504.82
AAR M-101
RT-AW-06-030
1893
157.26
188.35
295
350.31
AAR M-101
RT-AW-06-138
1756.50
157.27
212.61
226.85
356.47
AAR M-101
