For the axles of other standard. For example：EN 13261、TB 2945、JIS E4502-1、GOST 31334、GOST 33200 etc. The diameter of the axle journal is within the scope of φ100 to φ180.
Back to the catalogAxle of other types

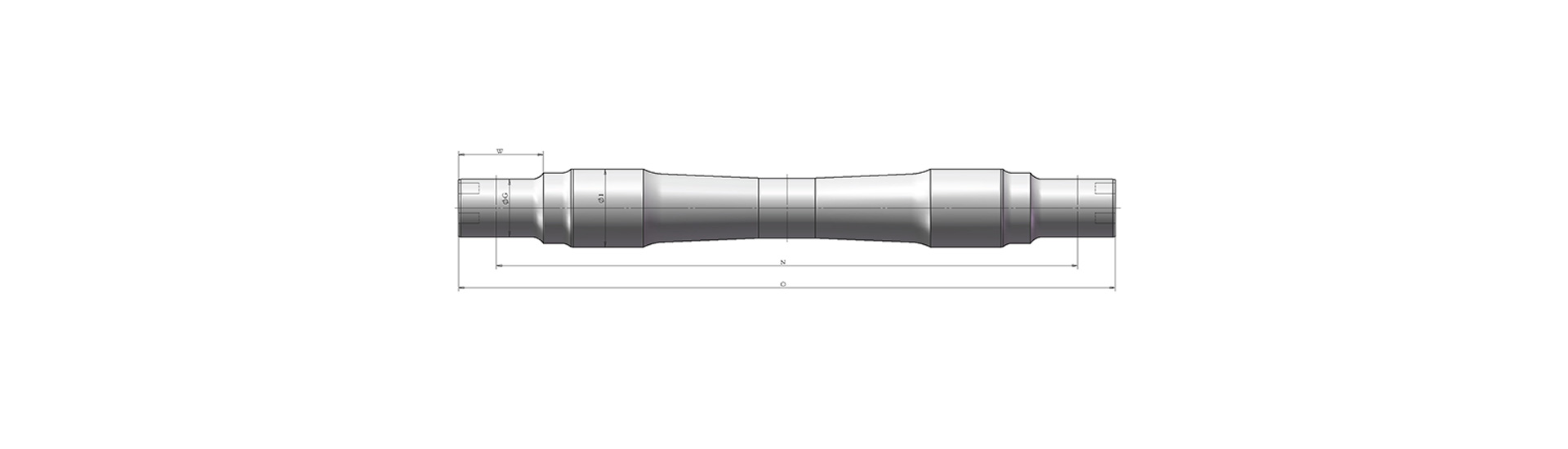

O：Axle length
N: Bearing center distance
G: Journal Diameter
I: Wheel seat Diameter
W: Journal Length
Drawing No. | O (mm) | N (mm) | G (mm) | I (mm) | W (mm) | Weight (kg) | Standard |
2180 | 1980 | 130 | 200 | 235 | 392.21 | AAR M-101 | |
2007 | 1930 | 110 | 148 | 95.5 | 252.6 | AAR M-101 | |
2020 | 100 | 169 | 287.53 | UIC 811-1 | |||
1939 | 157.24 | 216 | 418 | AAR M-101 | |||
1915.3 | 138.5 | 140.07 | 256.46 | AAR M-101 | |||
1792 | 130 | 215 | 387 | EN 13261 | |||
1805 | 130 | 157.2 | 228.46 | EN 13261 | |||
2181 | 1981 | 150 | 210 | 481.03 | TB/T 2945 | ||
1803 | 101.68 | 127.40 | 174.96 | AAR M-101 | |||
2311 | 160 | 238 | 616.76 | AAR M-101 |
