Wagon wheels are used for the bogies of railway freight wagon, running with general speed and high carry capacity. The type of brake is treading brake. Wagon wheels are commonly used in form of casting and roiled steel production and the wheel disks are mostly in the form of S and basin types.
Back to the catalogWagon Wheel

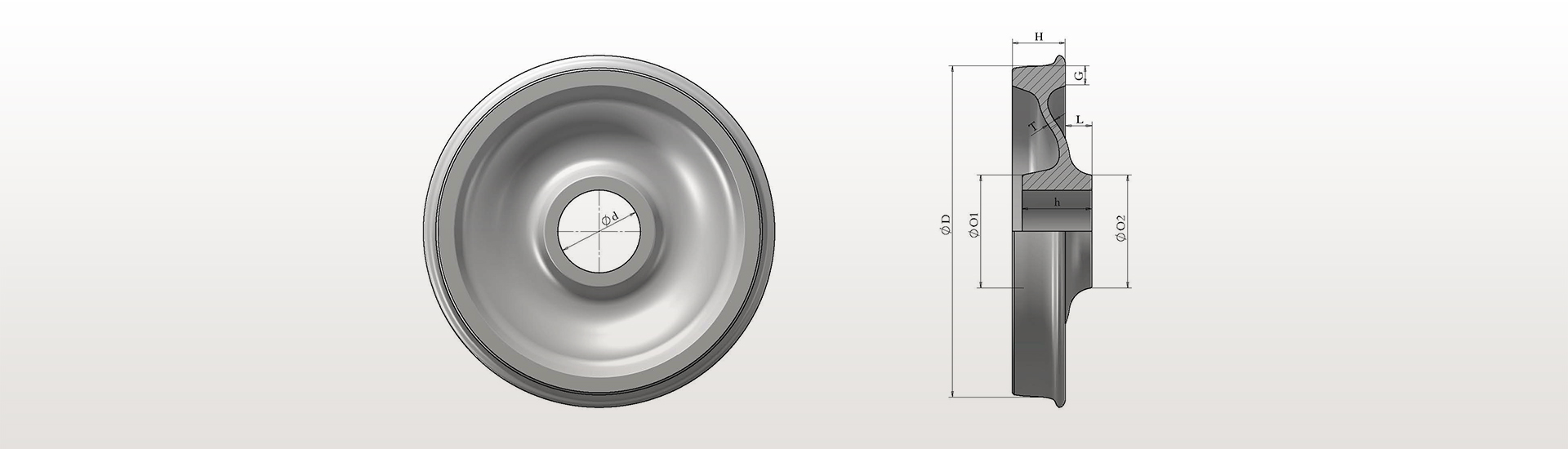

ΦD: Nominal Diameter
Φd: Hub Bore Diameter
L: Distance Between Inside Face of Hub and Rim
S: S Wheel Web
I: Straight Wheel Web
Drawing No. | ΦD (mm) | Φd (mm) | L (mm) | Type of Wheel Web | Weight (kg) | Standard |
650 | 161 | 30 | L | 223 | TB/T 2817-1997 | |
650 | 206 | 50 | L | 271 | TB/T 2817-1997 | |
711.2 | 136.5 | 10 | L | 243 | AAR M-107/M-208 | |
711.2 | 216 | 68 | L | 342 | TB/T 2817-1997 | |
762 | 187.5 | 63.5 | S | 312 | AAR M 107/M 208 | |
762 | 187.5 | 63.5 | S | 312 | AAR M 107/M 208 | |
765 | 172 | 60.5 | S | 332 | UIC 812-3 | |
774 | 152 | 57.5 | S | 290 | AAR M 107/M 208 | |
840 | 184 | 68 | S | 350 | TB/T 2817-1997 | |
840 | 203.2 | 63.5 | S | 386 | AAR M 107/M 208 |
